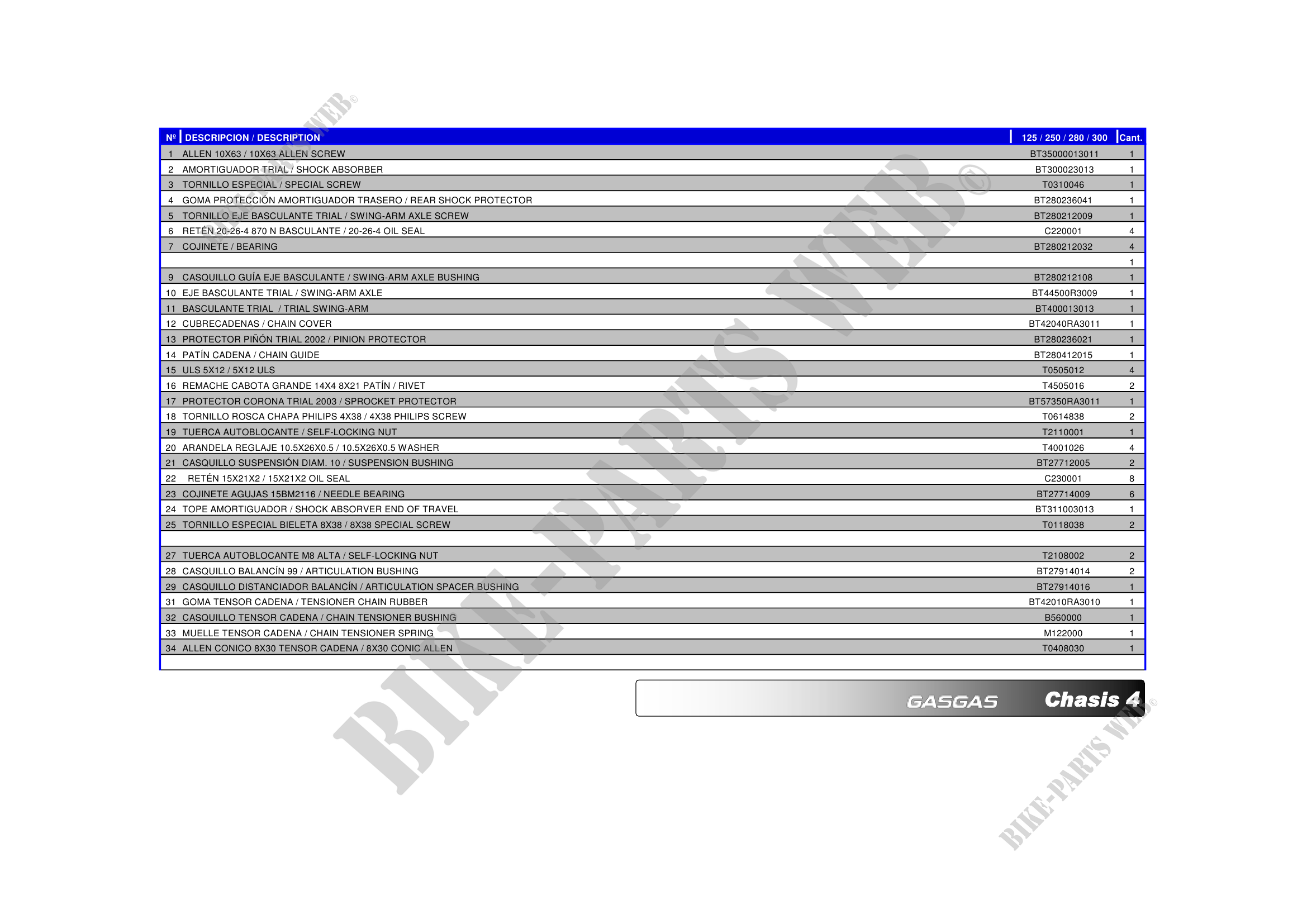

TXT 300 REPLICA FACTORY 312 Parts catalogue : Page 12

          N DESCRIPCION / DESCRIPTION                                        125 / 250 / 280 / 300   Cant.
1 ALLEN 10X63 / 10X63 ALLEN SCREW                                    BT35000013011           1
2 AMORTIGUADOR TRIAL / SHOCK ABSORBER                                 BT300023013            1
3 TORNILLO ESPECIAL / SPECIAL SCREW                                     T0310046             1
4 GOMA PROTECCIÓN AMORTIGUADOR TRASERO / REAR SHOCK PROTECTOR         BT280236041            1
5 TORNILLO EJE BASCULANTE TRIAL / SWING-ARM AXLE SCREW                BT280212009            1
6 RETÉN 20-26-4 870 N BASCULANTE / 20-26-4 OIL SEAL                     C220001              4
7 COJINETE / BEARING                                                  BT280212032            4
                                                                                             1
9 CASQUILLO GUÍA EJE BASCULANTE / SWING-ARM AXLE BUSHING              BT280212108            1
10 EJE BASCULANTE TRIAL / SWING-ARM AXLE                             BT44500R3009            1
11 BASCULANTE TRIAL / TRIAL SWING-ARM                                 BT400013013            1
12 CUBRECADENAS / CHAIN COVER                                       BT42040RA3011            1
13 PROTECTOR PIÓN TRIAL 2002 / PINION PROTECTOR                       BT280236021            1
14 PATÍN CADENA / CHAIN GUIDE                                         BT280412015            1
15 ULS 5X12 / 5X12 ULS                                                  T0505012             4
16 REMACHE CABOTA GRANDE 14X4 8X21 PATÍN / RIVET                        T4505016             2
17 PROTECTOR CORONA TRIAL 2003 / SPROCKET PROTECTOR                 BT57350RA3011            1
18 TORNILLO ROSCA CHAPA PHILIPS 4X38 / 4X38 PHILIPS SCREW               T0614838             2
19 TUERCA AUTOBLOCANTE / SELF-LOCKING NUT                               T2110001             1
20 ARANDELA REGLAJE 10.5X26X0.5 / 10.5X26X0.5 WASHER                    T4001026             4
21 CASQUILLO SUSPENSIÓN DIAM. 10 / SUSPENSION BUSHING                 BT27712005             2
22   RETÉN 15X21X2 / 15X21X2 OIL SEAL                                   C230001              8
23 COJINETE AGUJAS 15BM2116 / NEEDLE BEARING                          BT27714009             6
24 TOPE AMORTIGUADOR / SHOCK ABSORVER END OF TRAVEL                   BT311003013            1
25 TORNILLO ESPECIAL BIELETA 8X38 / 8X38 SPECIAL SCREW                  T0118038             2


27 TUERCA AUTOBLOCANTE M8 ALTA / SELF-LOCKING NUT                       T2108002             2
28 CASQUILLO BALANCÍN 99 / ARTICULATION BUSHING                       BT27914014             2
29 CASQUILLO DISTANCIADOR BALANCÍN / ARTICULATION SPACER BUSHING      BT27914016             1
31 GOMA TENSOR CADENA / TENSIONER CHAIN RUBBER                      BT42010RA3010            1
32 CASQUILLO TENSOR CADENA / CHAIN TENSIONER BUSHING                    B560000              1
33 MUELLE TENSOR CADENA / CHAIN TENSIONER SPRING                        M122000              1
34 ALLEN CONICO 8X30 TENSOR CADENA / 8X30 CONIC ALLEN                   T0408030             1




                                                                        Chasis 4
