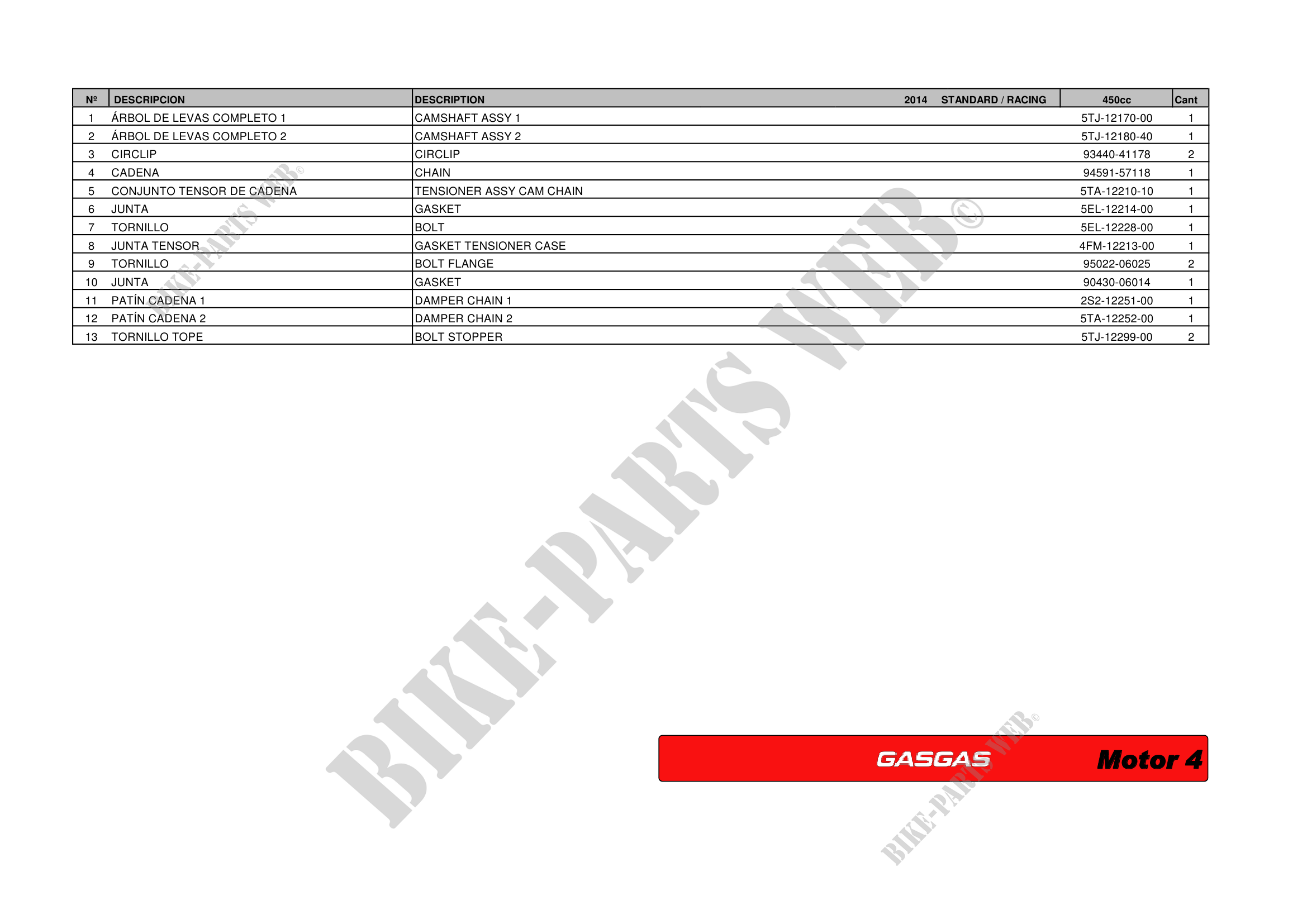

EC 250 F RACING 102 Parts catalogue : Page 68

Microfiches
Enter the part number above
Image preview

Page 66

Image preview

Page 67

Image preview

Page 69

Image preview

Page 70

1 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 168
                 N    DESCRIPCION                 DESCRIPTION                2014   STANDARD / RACING      450cc       Cant
       1    ÁRBOL DE LEVAS COMPLETO 1   CAMSHAFT ASSY 1                                       5TJ-12170-00     1
2014   2    ÁRBOL DE LEVAS COMPLETO 2   CAMSHAFT ASSY 2                                       5TJ-12180-40     1
       3    CIRCLIP                     CIRCLIP                                               93440-41178      2
       4    CADENA                      CHAIN                                                 94591-57118      1
       5    CONJUNTO TENSOR DE CADENA   TENSIONER ASSY CAM CHAIN                              5TA-12210-10     1
       6    JUNTA                       GASKET                                                5EL-12214-00     1
       7    TORNILLO                    BOLT                                                  5EL-12228-00     1
       8    JUNTA TENSOR                GASKET TENSIONER CASE                                 4FM-12213-00     1
       9    TORNILLO                    BOLT FLANGE                                           95022-06025      2
       10   JUNTA                       GASKET                                                90430-06014      1
       11   PATÍN CADENA 1              DAMPER CHAIN 1                                        2S2-12251-00     1
       12   PATÍN CADENA 2              DAMPER CHAIN 2                                        5TA-12252-00     1
       13   TORNILLO TOPE               BOLT STOPPER                                          5TJ-12299-00     2




                                                                                                Motor 4
