EC 250 F RACING 102 Parts catalogue : Page 22

Microfiches
Enter the part number above
Image preview

Page 20

Image preview

Page 21

Image preview

Page 23

Image preview

Page 24

1 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 168

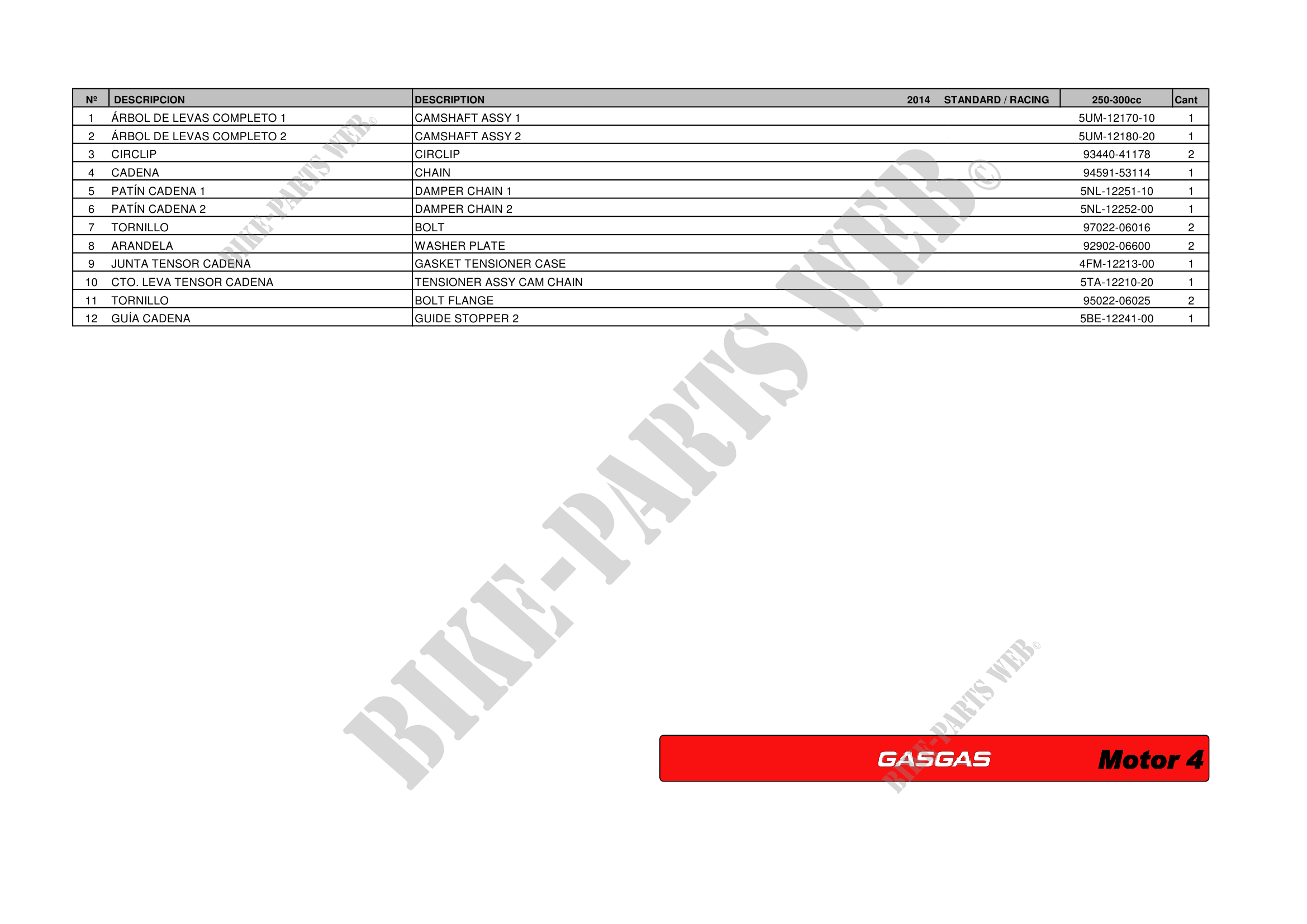

                 N    DESCRIPCION                 DESCRIPTION                2014   STANDARD / RACING     250-300cc    Cant


2014
       1    ÁRBOL DE LEVAS COMPLETO 1   CAMSHAFT ASSY 1                                       5UM-12170-10     1
       2    ÁRBOL DE LEVAS COMPLETO 2   CAMSHAFT ASSY 2                                       5UM-12180-20     1
       3    CIRCLIP                     CIRCLIP                                               93440-41178      2
       4    CADENA                      CHAIN                                                 94591-53114      1
       5    PATÍN CADENA 1              DAMPER CHAIN 1                                        5NL-12251-10     1
       6    PATÍN CADENA 2              DAMPER CHAIN 2                                        5NL-12252-00     1
       7    TORNILLO                    BOLT                                                  97022-06016      2
       8    ARANDELA                    WASHER PLATE                                          92902-06600      2
       9    JUNTA TENSOR CADENA         GASKET TENSIONER CASE                                 4FM-12213-00     1
       10   CTO. LEVA TENSOR CADENA     TENSIONER ASSY CAM CHAIN                              5TA-12210-20     1
       11   TORNILLO                    BOLT FLANGE                                           95022-06025      2
       12   GUÍA CADENA                 GUIDE STOPPER 2                                       5BE-12241-00     1




                                                                                                 Motor 4
                                                                     GAS GAS
