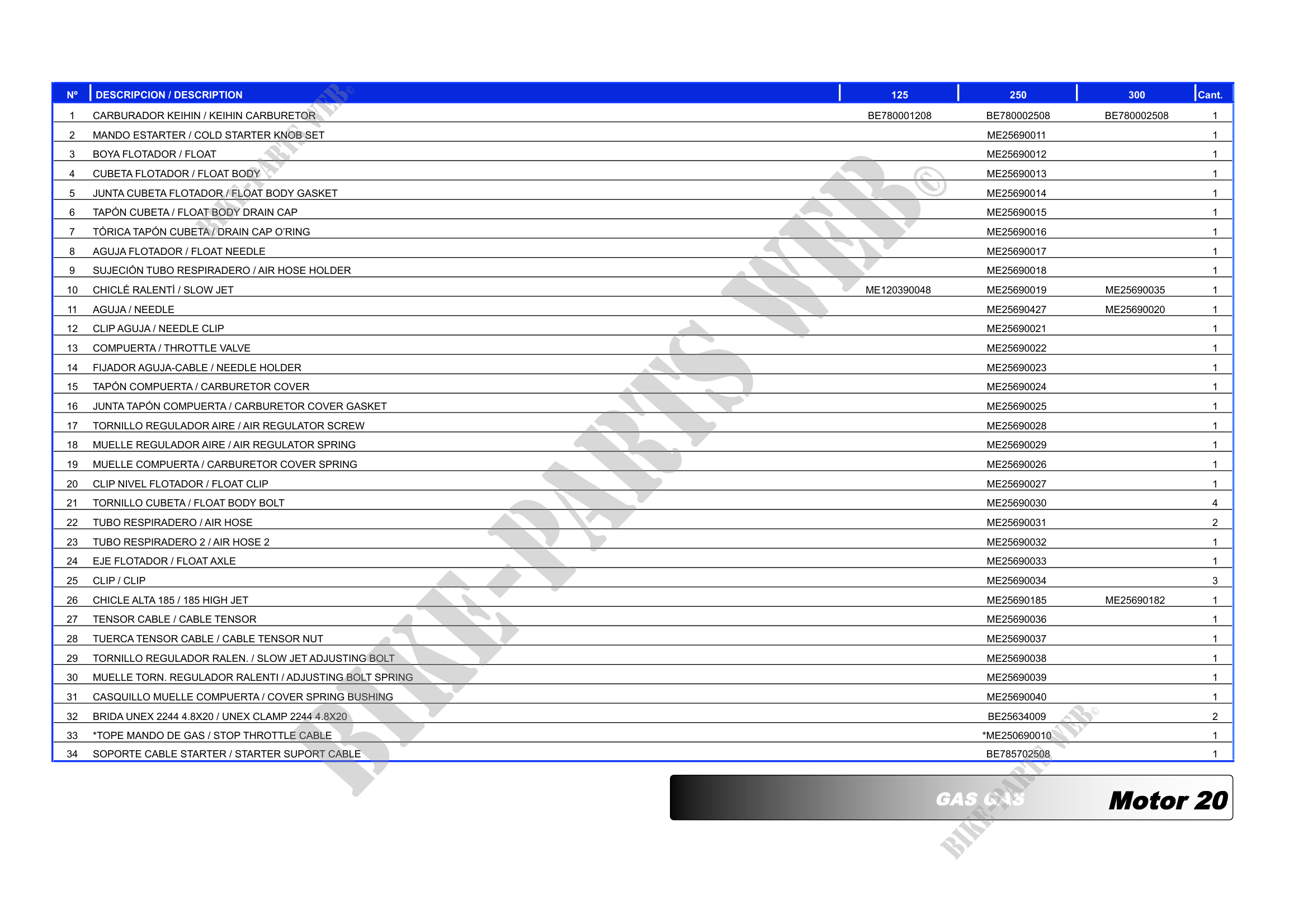

          N    DESCRIPCION / DESCRIPTION                                    125               250           300       Cant.

1    CARBURADOR KEIHIN / KEIHIN CARBURETOR                    BE780001208       BE780002508   BE780002508     1
2    MANDO ESTARTER / COLD STARTER KNOB SET                                     ME25690011                    1
3    BOYA FLOTADOR / FLOAT                                                      ME25690012                    1
4    CUBETA FLOTADOR / FLOAT BODY                                               ME25690013                    1
5    JUNTA CUBETA FLOTADOR / FLOAT BODY GASKET                                  ME25690014                    1
6    TAPÓN CUBETA / FLOAT BODY DRAIN CAP                                        ME25690015                    1
7    TÓRICA TAPÓN CUBETA / DRAIN CAP O'RING                                     ME25690016                    1
8    AGUJA FLOTADOR / FLOAT NEEDLE                                              ME25690017                    1
9    SUJECIÓN TUBO RESPIRADERO / AIR HOSE HOLDER                                ME25690018                    1
10   CHICLÉ RALENTÍ / SLOW JET                                ME120390048       ME25690019    ME25690035      1
11   AGUJA / NEEDLE                                                             ME25690427    ME25690020      1
12   CLIP AGUJA / NEEDLE CLIP                                                   ME25690021                    1
13   COMPUERTA / THROTTLE VALVE                                                 ME25690022                    1
14   FIJADOR AGUJA-CABLE / NEEDLE HOLDER                                        ME25690023                    1
15   TAPÓN COMPUERTA / CARBURETOR COVER                                         ME25690024                    1
16   JUNTA TAPÓN COMPUERTA / CARBURETOR COVER GASKET                            ME25690025                    1
17   TORNILLO REGULADOR AIRE / AIR REGULATOR SCREW                              ME25690028                    1
18   MUELLE REGULADOR AIRE / AIR REGULATOR SPRING                               ME25690029                    1
19   MUELLE COMPUERTA / CARBURETOR COVER SPRING                                 ME25690026                    1
20   CLIP NIVEL FLOTADOR / FLOAT CLIP                                           ME25690027                    1
21   TORNILLO CUBETA / FLOAT BODY BOLT                                          ME25690030                    4
22   TUBO RESPIRADERO / AIR HOSE                                                ME25690031                    2
23   TUBO RESPIRADERO 2 / AIR HOSE 2                                            ME25690032                    1
24   EJE FLOTADOR / FLOAT AXLE                                                  ME25690033                    1
25   CLIP / CLIP                                                                ME25690034                    3
26   CHICLE ALTA 185 / 185 HIGH JET                                             ME25690185    ME25690182      1
27   TENSOR CABLE / CABLE TENSOR                                                ME25690036                    1
28   TUERCA TENSOR CABLE / CABLE TENSOR NUT                                     ME25690037                    1
29   TORNILLO REGULADOR RALEN. / SLOW JET ADJUSTING BOLT                        ME25690038                    1
30   MUELLE TORN. REGULADOR RALENTI / ADJUSTING BOLT SPRING                     ME25690039                    1
31   CASQUILLO MUELLE COMPUERTA / COVER SPRING BUSHING                          ME25690040                    1
32   BRIDA UNEX 2244 4.8X20 / UNEX CLAMP 2244 4.8X20                            BE25634009                    2
33   *TOPE MANDO DE GAS / STOP THROTTLE CABLE                                  *ME250690010                   1
34   SOPORTE CABLE STARTER / STARTER SUPORT CABLE                               BE785702508                   1



                                                                            GAS GAS           Motor 20
