by

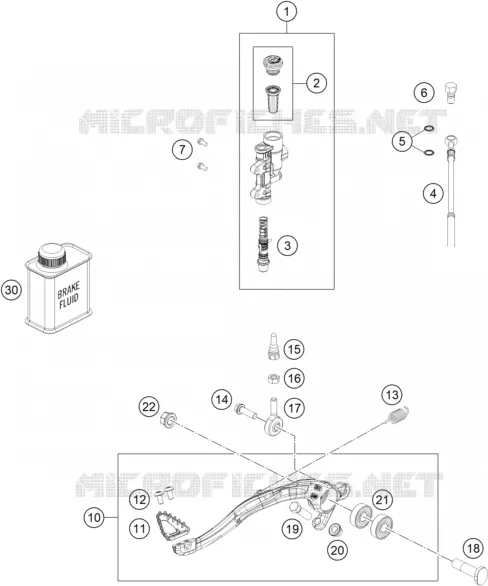

REAR BRAKE MASTER CYLINDER
30
7
14
5
21
16
20
18
22
17
15
12
19
11
13
10
6
1
3
2
4
1
rear master cylinder
A54013060044
149,82€ Unit Price incl. VAT
2
Cover Brake cylinder cpl.
A54013062100
22,50€ Unit Price incl. VAT
3
rear master cylinder repair ki
A54013061000
42,24€ Unit Price incl. VAT
4
Kit rear brake hose
A54013070000
95,40€ Unit Price incl. VAT
5
sealing ring DIN 7603 10x14x1
0603100141
1,44€ Unit Price incl. VAT
6
bolt M10
A54013025000
7,98€ Unit Price incl. VAT
7
HH collar screw M6x12 TX30
0025060126
1,98€ Unit Price incl. VAT
10
foot brake lever cpl
A46013050044
80,82€ Unit Price incl. VAT
11
STEP BRAKE LEVER 16
79413051000
16,86€ Unit Price incl. VAT
12
Torx hexagon socket screw M5x1
58605083010S
2,16€ Unit Price incl. VAT
13
Retracting spring
A46003062000
5,52€ Unit Price incl. VAT
14
HH collar screw M6x20 TX30
0025060206S
2,22€ Unit Price incl. VAT
15
PUSH ROD L=28MM 03
54813056000
13,80€ Unit Price incl. VAT
16
hex nut DIN 934 M6
0934060003
1,14€ Unit Price incl. VAT
17
Joint head CMP6
54813055100
27,54€ Unit Price incl. VAT
18
Screw foot brake lever
47213054000
2,88€ Unit Price incl. VAT
19
SPECIAL SCREW M8X26 WS=10
59001037000
3,00€ Unit Price incl. VAT
20
flanged nut M8 WS10
46030045000
3,42€ Unit Price incl. VAT
21
deep groove ball bearing SKF 6
0625060002
6,90€ Unit Price incl. VAT
22
COLLAR NUT M10 WS=13
54630044000
3,06€ Unit Price incl. VAT
30
BRAKE FLUID DOT5.1 0,25L
00062030000
12,60€ Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
