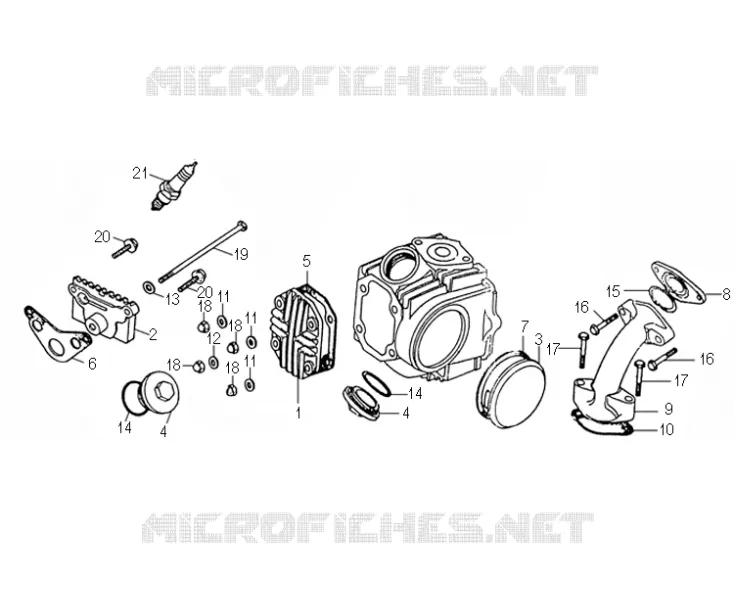

CYLINDER HEAD COVER

R2-1

TAPA CULATA K1 110 2-1

102231

Not Available

R2-2

TAPA DERECHA CULATA K1 110 2-2

102252

Not Available

R2-3

TAPA IZQUIERDA CULATA K1 110 2-3

102251

Not Available

R2-4

TAPA AJUSTE VALVULA K1 110 2-4

102294

Not Available

R2-5

JUNTA TAPA CULATA K1 110 2-5

102249

Not Available

R2-6

JUNTA TAPA DERECHA K1 110 2-6

102259

Not Available

R2-7

JUNTA TAPA IZQUIERDA CULATA K1 1

102258

Not Available

R2-8

JUNTA TUBERA CARBURADOR K1 110 2

113199

Not Available

R2-9

PIPE AD. K2

113611

Not Available

R2-10

JUNTA TUBERA CULATA K1 110 2-10

113614

Not Available

R2-11

WASHER, SEALING ?6�13�2

T22134061320

Not Available

R2-12

WASHER A, SEALING ?6�13�2

T21841061320

Not Available

R2-13

WASHER, SEALING ?6�12�1.2

T21904061212

Not Available

R2-14

TORICA VALVULA AJUSTE 30.8X3.8 K

T51120320308

Not Available

R2-15

TORICA TUBERA ADMISION 25X2.4 K

T51120240025

Not Available

R2-16

TORNILLO M6X25 K1 2-16

S60625DL

Not Available

R2-17

TORNILLO M6X32 K1 2-17

S60632DL

Not Available

R2-18

NUT, CAP M6

T15218106000

Not Available

R2-19

TORNILLO M6X10 K1 2-19

T11217006110

Not Available

R2-20

TORNILLO M6X20 K1 2-20

SB0620DL

Not Available

R2-21

BUJIA K1 110 R2-21

305300

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

List of machines using this diagram

K2 110 2007
