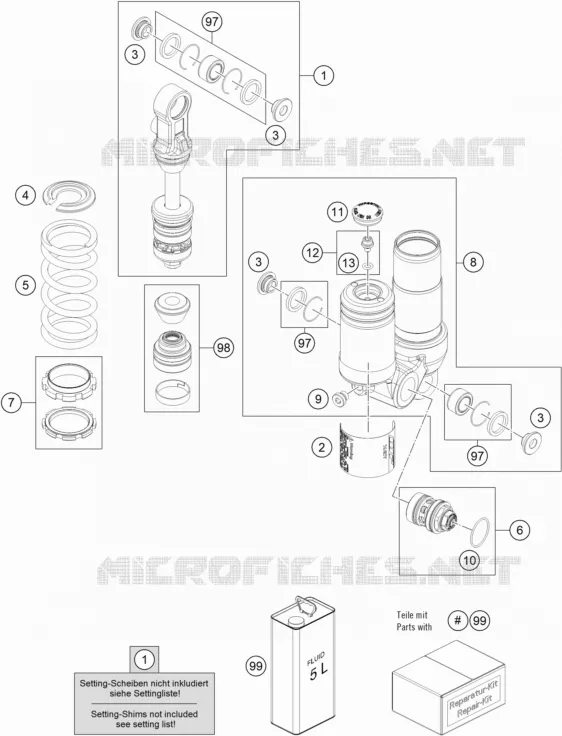

SHOCK ABSORBER (PARTS)
1
1
2
3
3
3
3
4
5
5
5
6
7
8
9
10
11
12
13
97
97
97
99
98
5
1
bottom part cpl.
36120781S17
261,06€ Unit Price incl. VAT
2
sticker XACT 90x40
52000263
15,30€ Unit Price incl. VAT
3
Distance bush 10x15/18/24,5x9,
46180009
7,44€ Unit Price incl. VAT
4
Spring retainer 27x57x2
36120386
18,36€ Unit Price incl. VAT
5
SHOCK SPRING 40N/MM - 130MM WH
93010219S
90,72€ Unit Price incl. VAT
5
Spring (47) 25-130,0 shock whi
93010227
90,72€ Unit Price incl. VAT
5
SHOCK SPRING 30N/MM - 130MM WH
93010218S
90,72€ Unit Price incl. VAT
5
SHOCK SPRING 35N/MM - 130MM WH
93010217S
90,72€ Unit Price incl. VAT
6
compression cpl.
50181101S38
73,92€ Unit Price incl. VAT
7
ADJUSTING NUT CPL.
36120418S
22,44€ Unit Price incl. VAT
8
Top part cmpl.
36120858S2
261,06€ Unit Price incl. VAT
9
HS cylinder-head screw R1/8 l8
50180095
4,98€ Unit Price incl. VAT
10
O-ring 27x1,5 Viton70 green IS
50180217
3,66€ Unit Price incl. VAT
11
Rubber cap do not open 22x5,5
46811208
4,74€ Unit Price incl. VAT
12
PLUG SCREW M5X6 CPL.
36120151S
4,62€ Unit Price incl. VAT
13
O-ring 5,28x1,78 NBR70 black
46810893
1,14€ Unit Price incl. VAT
97
Ball joint bearing kit top 12m
R12012
36,72€ Unit Price incl. VAT
98
SHOCK ABSORBER FLUID 5 LT
50180751S1
110,58€ Unit Price incl. VAT
99
REP. KIT MONOSHOCK MINI 17
RP10003
66,84€ Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
