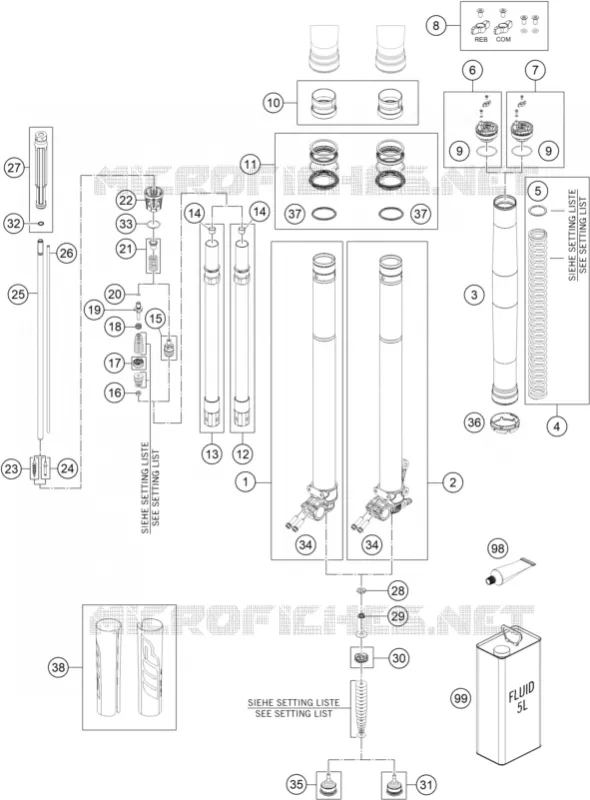

FRONT FORK (PARTS)

Axleclamp OC right cpl. with t

48601933S1

381,48€ Unit Price incl. VAT

Axleclamp OC left cpl. with tu

48601932S1

381,48€ Unit Price incl. VAT

fork outer tube 49.13x577 dt54

48602096

313,56€ Unit Price incl. VAT

main spring (43.8) 4.4-470 for

S809900033S0000

110,16€ Unit Price incl. VAT

main spring (43.8) 3.6-470 for

S809900029S0000

110,16€ Unit Price incl. VAT

main spring (43.8) 5.2-470 for

S809900037S0000

110,16€ Unit Price incl. VAT

main spring (43.8) 3.8-470 for

S809900030S0000

110,16€ Unit Price incl. VAT

main spring (43.8) 4.0-470 for

S809900031S0000

110,16€ Unit Price incl. VAT

main spring (43.8) 4.6-470 for

S809900034S0000

110,16€ Unit Price incl. VAT

main spring (43.8) 4.8-470 for

S809900035S0000

110,16€ Unit Price incl. VAT

main spring (43.8) 5.0-470 for

S809900036S0000

110,16€ Unit Price incl. VAT

main spring (43.8) 4.2-470 for

S809900032S0000

110,16€ Unit Price incl. VAT

Washer 35x43x2,5 plastic

48600456

4,50€ Unit Price incl. VAT

Preload bush 35x43x3,5

48600457

4,50€ Unit Price incl. VAT

Washer 35x43x1,5 plastic

48600458

4,50€ Unit Price incl. VAT

Screw cap M51x1,5 rebound cpl.

48601960S

70,20€ Unit Price incl. VAT

Screw cap M51x1,5 compression

48601961S

70,20€ Unit Price incl. VAT

Adjuster kit screw cap

RP10021

12,48€ Unit Price incl. VAT

O-ring 46x2 NBR70 siliconized

48600048

1,86€ Unit Price incl. VAT

Guide bushing set fork 48mm

R14047T

34,02€ Unit Price incl. VAT

Seal kit 48mm SKF black

RP10048T

71,58€ Unit Price incl. VAT

Tube with screwsleeve and hole

S962300000S0000

134,64€ Unit Price incl. VAT

Tube with screwsleeve

S962300001S0000

134,64€ Unit Price incl. VAT

Guide bushing 12x14x10

48600430

7,38€ Unit Price incl. VAT

Tap compression cpl.

48601843S3

33,06€ Unit Price incl. VAT

Nut M6x0,5 h6,5 WAF10 rebound

40540486

4,50€ Unit Price incl. VAT

Midvalve piston assembly d23

48602002S

22,98€ Unit Price incl. VAT

Spring (11,4) 0,4-8 valve

48600382

4,50€ Unit Price incl. VAT

Tap 6x46 rebound

48600576

12,42€ Unit Price incl. VAT

O-ring 6x1,2 NBR70

48600299

1,32€ Unit Price incl. VAT

Spring (13,9) 37-32 rebound cp

48600578S

22,98€ Unit Price incl. VAT

Spring retainer 27,08x43x45

48601298

20,70€ Unit Price incl. VAT

Needle 4,5x43,6 cpl.

48600277S

8,64€ Unit Price incl. VAT

Needle 4,5x38,2 cpl.

48601558S

8,64€ Unit Price incl. VAT

Piston rod 12x554

48600568

91,80€ Unit Price incl. VAT

Adjustment tube 6x524,6

48602036

22,98€ Unit Price incl. VAT

Stop 12,4x31,9x200,3 kpl.

S228700003S0100

40,44€ Unit Price incl. VAT

Nut valve M6x0,5 h6,5 WAF17

48600163

4,50€ Unit Price incl. VAT

Spring (10,2) l5 check valve

48600611

4,98€ Unit Price incl. VAT

Piston 6x27,3x9 compression cp

48601934S

22,98€ Unit Price incl. VAT

Screw cap M29,3x1 OC split cpl

48601553S

22,98€ Unit Price incl. VAT

O-ring 11x2,5 NBR70 PTFE yello

04500003

1,38€ Unit Price incl. VAT

Shim 27,5x33x0,3

48601702

2,34€ Unit Price incl. VAT

HH collar screw M8x25

0025080256

3,24€ Unit Price incl. VAT

Screw cap M29,3x1

48601980S

22,98€ Unit Price incl. VAT

Fork protection ring 59,8mm

S639200001000FA

9,00€ Unit Price incl. VAT

Stroke indicator 48mm red

48602007

6,00€ Unit Price incl. VAT

Sticker set Xplor OC 238x182.5

52000238SET

27,54€ Unit Price incl. VAT

Fuchs grease IPR (250g)

T14034

34,68€ Unit Price incl. VAT

Fork Fluid Viscosity 4.0 5L

48601166S1

110,58€ Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.

List of machines using this diagram

ENDURO 300 2024

View
